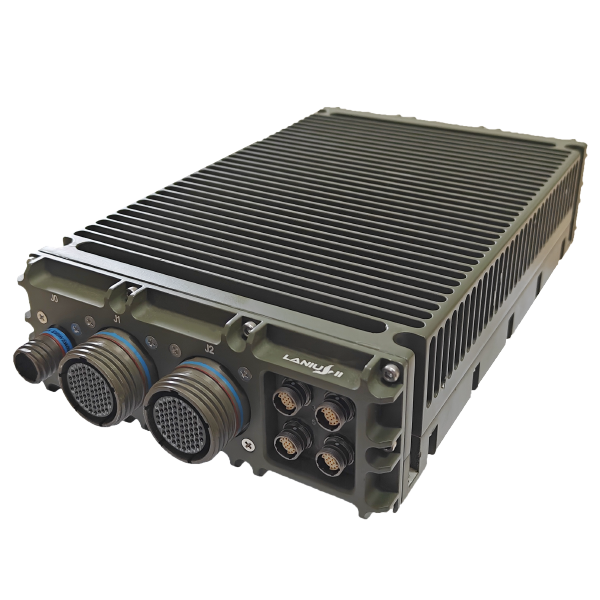

The Lanius is a Rugged Micro Computer in a very small form factor weighing < 800gms made for space critical applications. The compact rugged computer is suitable for all kind of harsh military environments and is optimal for instance in combat vehicles, helicopters and UAVs which needs extremely small footprint and ultra-slim systems.
Lanius is so small that it fits in the palm of the hand!

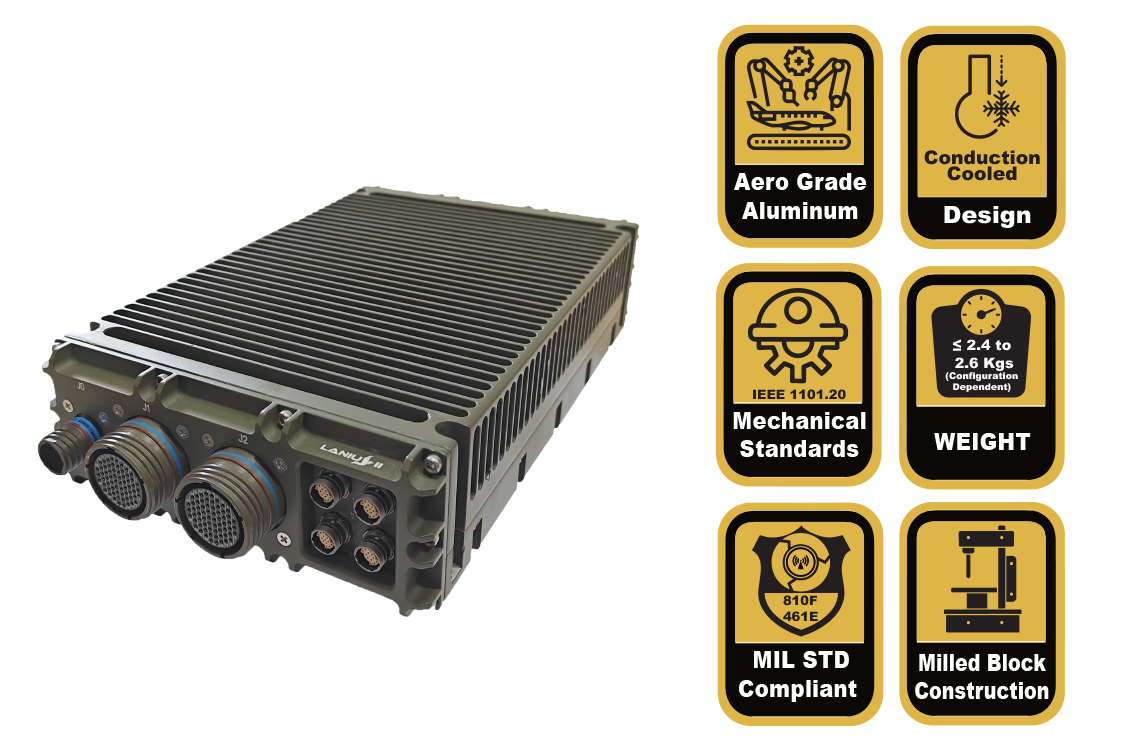

Lanius is fanless and its chassis is fully sealed for protection against dust and corrosive elements and is designed to meet military standards. The Lanius combines years of design experience with a wealth of cutting edge features. It’s robust performance make it an attractive choice for military, commercial, and industrial use.
Technical Specification
Lanius TX - NVIDIA® Tegra X1/X2
- CPU: NVIDIA Tegra X1 Quad-core ARM Cortex-A57 / NVIDIA Tegra X2 Quad ARM® A57
- Graphics: NVIDIA Pascal™ (1.5TFLOPS) / NVIDIA Maxwell™ GPU (1 TFLOPS)
- Memory: 8 GB LPDDR4
- Mass Storage: 32GB eMMC
- Video Output: DP / HDMI / DVI
- I/Os:
• 2 x GigE
• 2 x USB2.0
• 1 x HD Audio, 1 x UART, 8 x GPIO
• 3 x miniPCIe + 1x mPCI / mSATA - Dimensions: 100mm x 150mm x 35mm
- Weight: < 1Kg
- Power: 9 - 36 VDC @ 20 – 30W (Configuration Dependent)
- Operating Temp: -40 °C ~ +55 °C
- MIL-STD-810F, MIL-STD-461F, MIL-STD-704F/1275D
- Operating System: Ubuntu, Linux
Lanius II - Core i7/Xeon
- CPU: Intel Core i7/ Xeon E3 Processors 9th/11th Generation or latest
- Memory: 16-64 GB (RAM)
- Mass Storage: Upto 1.9 TB (through M.2)
- Video Output: 2x DP / DVI
- I/Os: (through MIL-STD-38999 & Hercules Connectors)
• 2x GigE
• 2x USB3.0
• 2x USB2.0
• 1x HD Audio, 2x UART, 8x GPIO
• 4x miniPCIe + 2x mSATA - Dimensions: 200mm x 175mm x 60mm
- Weight: < 2Kg
- Power: 12 ‐ 36 VDC @ 20 – 30W (Configuration Dependent)
- Operating Temp: 40°C to +55 °C (standard), up to +71°C (Configuration Dependent)
- Storage Temp: -40 °C ~ +85 °C
- Environmental: MIL- STD-810H
- EMI: MIL-STD-461G
- Power: MIL-STD-704F/MIL-STD-1275E
- Operating System: Linux and Windows 10
Lanius 5G
- CPU: Intel Core i7 – 7600U or ATOM x6000E Processors or latest
- Memory: up to 16 GB DDR4 RAM
- Storage: up to 512GB through mSATA
- Integrated Graphics Controller
- Video Output: 1 x Display Port
- I/O's (Standard):
• 2 x Gigabit Ethernet
• 1 x USB 3.0, 2 x USB 2.0
• 2 x RS232 (TX/RX- Console)
• 8 x GPIOs
• LTE Advanced/5G Data Card
• GPS
• Bluetooth
• WiFi 6e (Tri-band 2.4 GHz/5 GHz/6 GHz support) - I/O's Expansion:
• 2 x MiniPCIe / AcroPack Sites
• 4 x Gigabit Ethernet
• Security: TPM 2.0 (optional) - Dimensions: 72 (H) X 188(W) X 155.8 (D) all in mm
- Weight: < 2.2kgs (Configuration Dependent)
- Connectors: MIL-Circular
- Health Monitor: System Health Monitor & Control (Optional)
- Power: 28 VDC @ 30-65W (Configuration Dependent)
- Operating Temp: -40°C to +55 °C, up to +71°C (Depending on Thermal Load)
- Storage Temp: -40°C to +85 °C
- Environmental: MIL- STD-810H
- Cooling: Fanless Conduction Cooled
- Operating System Support: Windows 10 & Linux
SBC with Audio & Video Graphics
XMC SDR, ATDS / NTDS
MIL-STD-1553b Data Bus
Discrete I/O
Gigabit Ethernet
Optional IMU/GPS
Optional IMU/GPS
