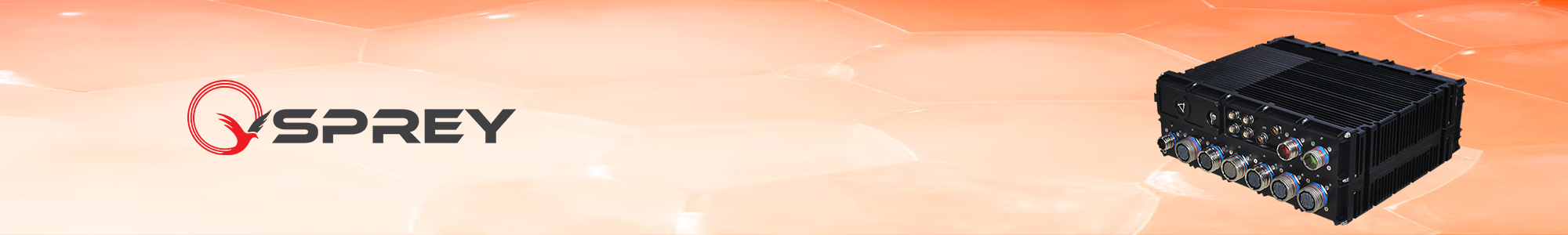

The Osprey is a rugged small form factor, commercial off the shelf (COTS) embedded computer based on 3U VPX (also known as VITA 46), the next generation of ruggedized compact embedded systems. The system enclosure is designed to receive boards in the size of VPX 3U format and interface with its associated specific backplane and work in an airborne environment. The boards are cooled entirely by conduction through the chassis walls of the computer.
Technical Specification
- CPU: Intel® Xeon® processor D-1500 Family: 8-core or 12-core processing.
- Memory: 32 G bytes of DDR4 DRAM
- Storage: On-board solid -state drive (SSD) option: Flash Drive Module: 2.5 Inch SATA300 SSD
- Connectors: Circular Mil Connectors
- GPU Module: Graphics Processor: AMD Radeon E8860
- Interface: XMC Form Factor, 8 Lane PCIe Interface
- Graphics Memory: 2GB GDDR5 Memory
- GPU I/O: 2 X SDI Input/ Output, 1 x VGA, 1 x Display Port
- SBC I/O: 1x USB2.0 and USB3.0, 3x RS232, 4x GPIO, 2 x 1Gb-ETH, 2 x 10Gb_ETH (Built Option)
- Expansion: mPCIe1, mPCIe2, and mPCIe3 Field I/O’s
- Dimensions: 194 (H) X 200(W) X 238 (D) all in mm
- Operating Temperature: -40°C to +71°C
- Storage Temperature: -40°C to +85°C
- Weight: Approx. 8 Kg
- Material: Aluminum
- Mil Standards: MIL-STD-810F, MIL-STD-461F,MIL-STD-704F/1275D
- Operating System: LINUX, Windows
3U 4-Slot VPX backplane designed as per ANSI-VITA-46 standards
Circular I/O Interface board
Battery to preserve the CMOS Contents of the VPX Boards.
120W Front end filter with reverse polarity protection and transient protection.
VITA-62 120W (Usable Power) DC-DC 3U Pluggable Power Supply Unit
